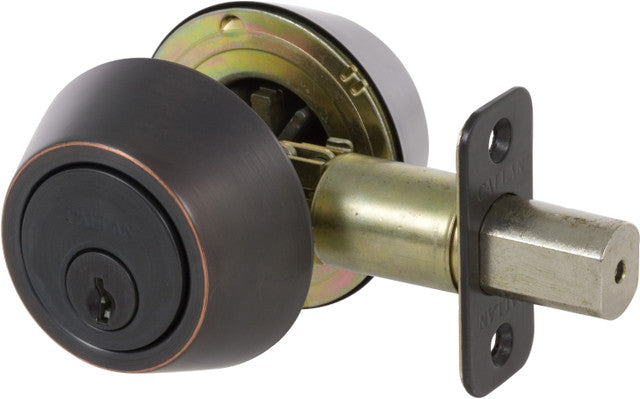

Callan Double Cylinder Deadbolt, Oil-Rubbed Bronze Edged (US10BE)

Double Cylinder Function: Double cylinder deadbolts are keyed on both sides of the door and are only locked and unlocked via a key. Often times they are used on doors where glass is near the door that could be easily broken and the thumbturn on a standard single cylinder lock would be accessible. Caution: Double Cylinder locks can pose a safety hazard in times of emergency due to requiring a key to unlock. Please check local codes before installing.

Features:

• Meets BHMA security grade 3 requirements
• Made of durable zinc
• Fully reversible handing for left or right handed applications
• Designed for an easy one person installation
• Comes standard with a round corner latch faceplate and 1" throw
• Includes a limited lifetime warranty on mechanical parts and a five year warranty on finish

Specifications:

• Backset: Adjustable 2-3/8" or 2-3/4"
• Cross Bore: 2-1/8"
• Edge Bore: 1"
• Door Thickness: 1-3/8" to 1-3/4"
• Handing: Reversible Left or Right
• Diameter: 2-1/2"
• Projection: 15/16"
• Latch Faceplate: Round Corner
• Cylinder: 5 Pin KW1
• Concealed Screws: No
• Material: Zinc
