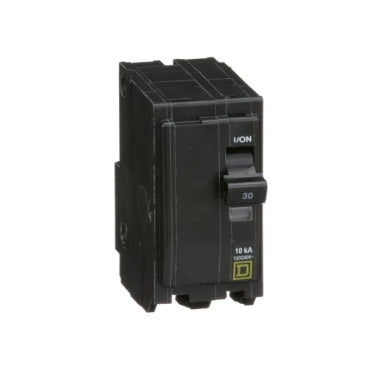

Schneider Electric Mini circuit breaker QO 30A

Schneider Electric



Description

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 30A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555

Specifications

Product Miniature circuit-breaker
Range QO
Current Rating 30 A
Voltage Rating 120/240 V AC
120 V AC
48 V DC
Mounting Type Plug-in
Number of Poles 2P
Circuit Breaker Type Standard
Ratings HACR rated
Electrical Connection Pressure plate
